BJ3045D9PBA-1

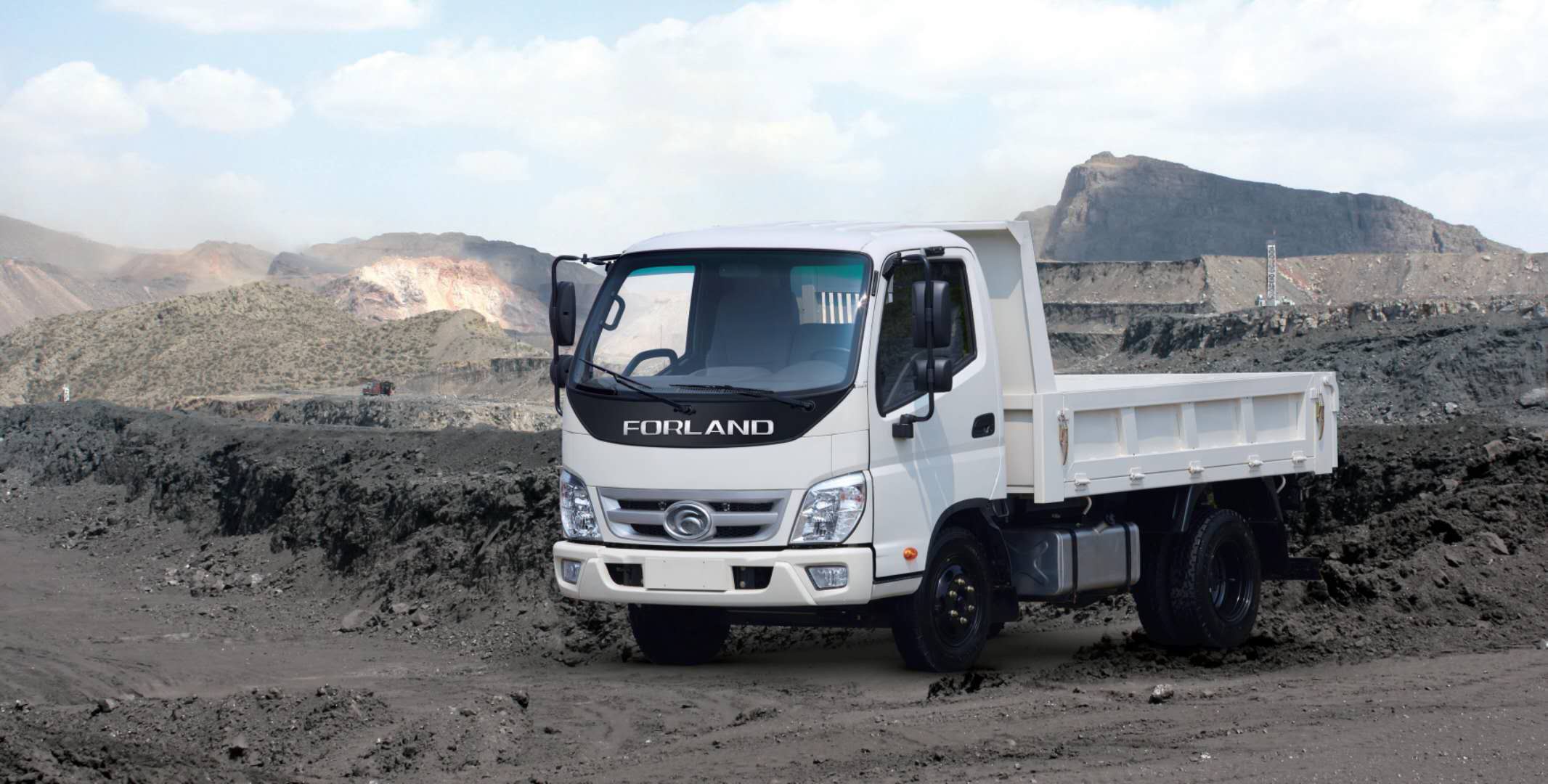

FOTON Forland
General information | ||||
Classification | Deluxe | Deluxe | ||
Product platform | 3T | 3T | ||
Vehicle Model | BJ3045D9PBA-1 | |||
Driving Type | 4×2 | 4×2 | ||
Side of Steering wheel | Left | Left | ||
Dimension | ||||
Wheelbase | mm | 3360 | 3360 | |
Overall dimensions (LxWxH) | mm | 5705×2000×2280 | 5705×2000×2280 | |
Cargo body inner dimension(LxWxH) | mm | 3500×1860×450 | 3800×1860×400 | |
Front/rear wheel track | mm | 1650/1555 | 1650/1555 | |
Front/rear suspension length | mm | 1190/1295 | 1190/1295 | |
Weight | ||||
Payload | kg | 3000 | 3000 | |
Curb weight | kg | 2860 | 2860 | |
GVW | kg | 5990 | 5990 | |
Power system | ||||
Engine | Model | BJ493ZLQV1 | BJ4J28TC | |
Displacement(L) | 2.771 | 2.771 | ||
Emission standard | EuroⅡ | EuroIII | ||
Power | kw/rpm | 76/3600 | 81/3600 | |
Max torque | Nm/rpm | 225/2200 | 285/2200 | |
Transmission | Model | LC5T88 | 5TS32 | |
Rear axle | Rear axle/Ratio | 3T/6.167 | 3T/6.167 | |
Performance Parameter | ||||
Max. speed | km/h | 100 | 100 | |
Max. gradeability (full load) | % | 28% | 28% | |
Min.turning radius | m | 6.5 | 6.5 | |
Min.ground clearance | mm | 205 | 205 | |
Chassis | ||||
Suspension | Front/rear leaf spring | 7/7+5 | 7/7+5 | |
Brake | Type of brake | Hydraulic/Air brake | Hydraulic | |
Steering wheel | Steering type | Power steering | Power steering | |
Tire | Model/numbers | 7.00R16/6+1 | 7.00R16/6+1 | |
Fuel tank | Capacity | L | 80 | 80 |
Frame | Type/dimension | mm | Rivet 192×65×6 | Rivet 192×65×6 |
Body builder spec | ||||
Oil cylinder type | 90 double cylinder | 90 double cylinder | ||
Function parameter | ||||
Air conditioner | ○ | ○ | ||
Heater | ● | ● | ||
Spare tire | ● | ● | ||
Power steering | ● | ● | ||
Air deflector | × | × | ||
Exhaust brake | ● | ● | ||
Loading sensing pressure proportioning valve | ○ | ● | ||
ABS | ○ | ● | ||
Air bag | × | ● | ||
Power window | × | × | ||
